INSIZE 2844-10 ELECTRONIC SURFACE PROFILE GAGES

Range: 0-.5"/0-12.7mm

Digital Indicator Stroke: .5"/12.7mm

Product Description

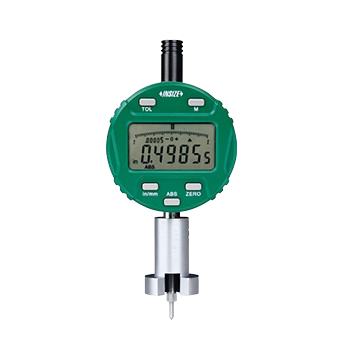

2844-10 INSIZE Electronic Surface Profile Gage: 0-.5″/0-12.7mm

The INSIZE 2844-10 Electronic Surface Profile Gage has the following specifications:

• Range: 0-.5″/0-12.7mm
• Digital Indicator Stroke: .5″/12.7mm
• Digital Indicator Resolution: .00005″/0.001mm
• Accuracy: ±.0002″

Features:

• Measure peak-to-valley height of blast cleaned surface. If the profile is too low, the adhesion of the coating to the surface will be reduced. If the profile is too high, there is the danger that the profile peaks will remain uncoated, allowing rust spots to occur.
• Display maximum, minimum, difference value between maximum and minimum
• Meet ASTM D 4417-B
• Zero set block is included, set zero before measurement
• Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement
• CR2032 battery, automatic power off
• Data output
• Stainless steel base
• Zero set block included
• Optional accessory: data output cable (code 7315-50M, 7302-40M, 7305-40M)

INSIZE Electronic Surface Profile Gages

• 2844-10 Electronic Surface Profile Gage: 0-.5″/0-12.7mm (Can Display Maximum and Minimum Differences)
• 2843-10 Electronic Surface Profile Gage: 0-.5″/0-12.7mm
